| Climatic Control: -40 to 80C, 10-98%RH |Athletic Chamber

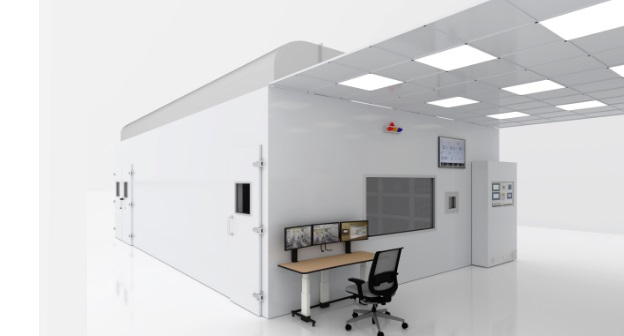

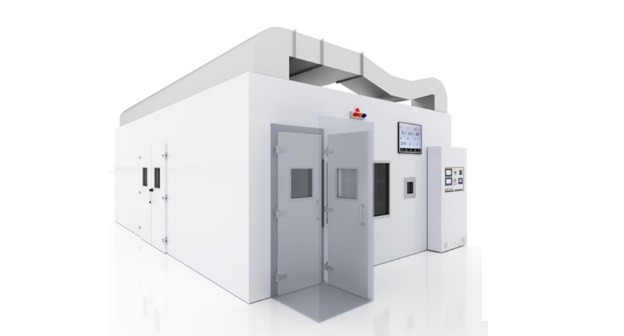

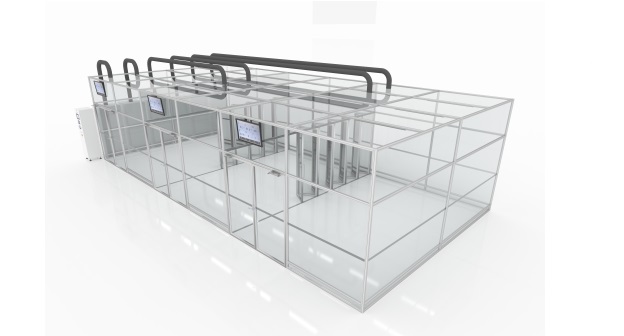

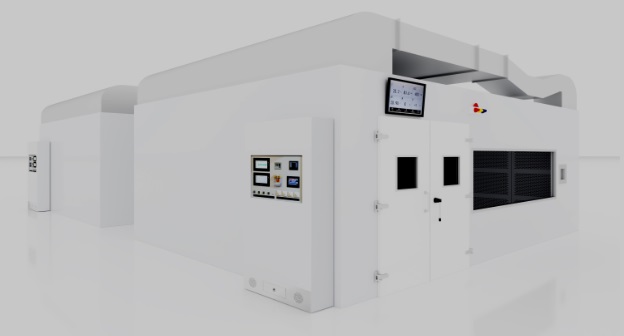

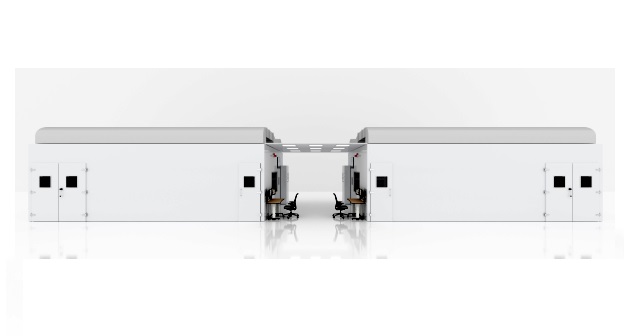

Welltech designs and builds the Athletic Environmental Chamber for the customers who
need the unique environments for their sports science and human performance applications. Each chamber is
specifically built to stimulate a variety of environmental parameters, in order to achieve the complete and
desired weather conditions inside the environmental chamber.

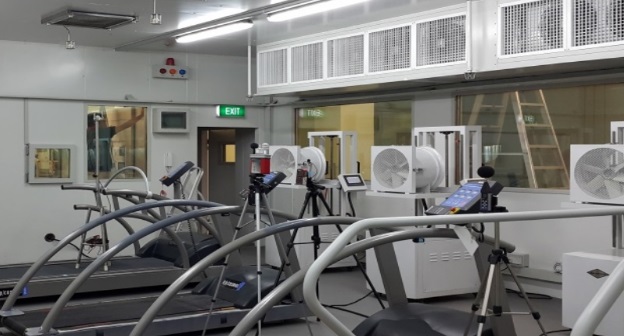

The chamber can stimulate different kinds of weather for athlete to do the training & exercise inside, with temperature range from -40 to 80C and humidity from 10 to 99%RH.
The chamber can stimulate different kinds of weather for athlete to do the training & exercise inside, with temperature range from -40 to 80C and humidity from 10 to 99%RH.
The chamber can stimulate different kinds of weather for athlete to do the training
& exercise inside, with temperature range from -40 to 80C and humidity from 10 to 99%RH.
It can be integrated with the following system to become an all-in-one multi-function chamber

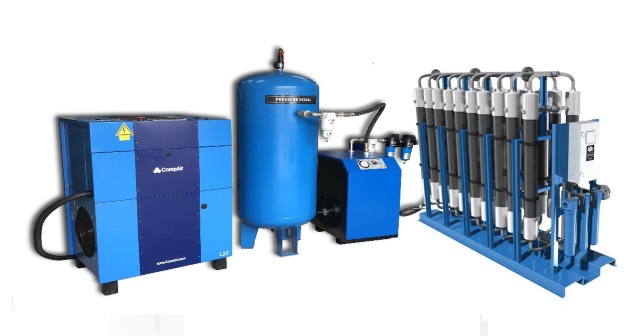

- Hypoxic System

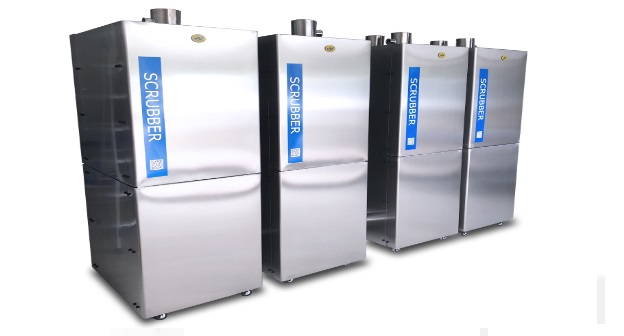

- CO2 Scrubber

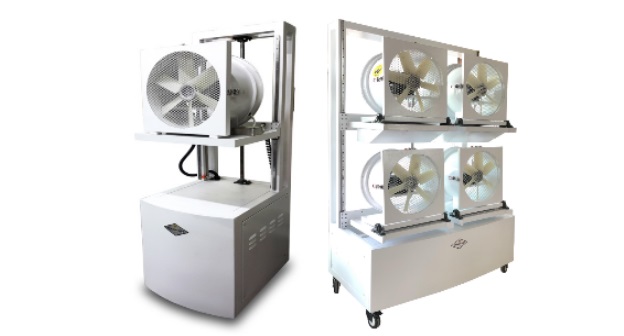

- Wind Simulator

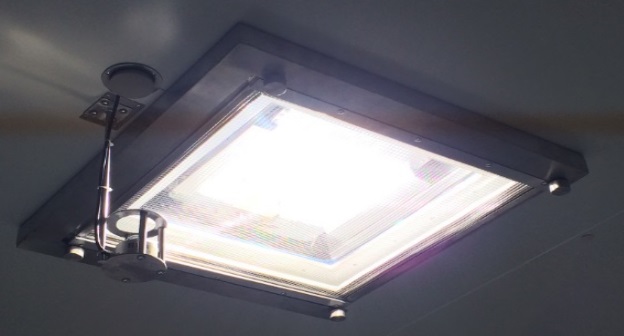

- Solar Simulator

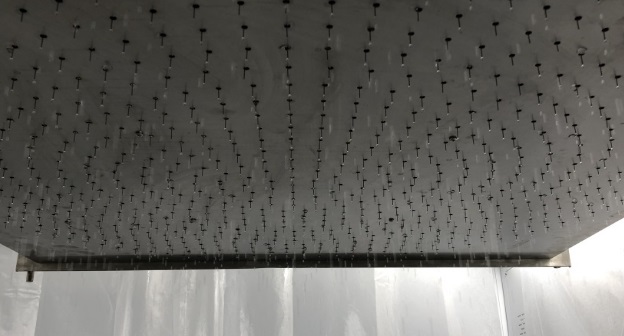

- Rain Simulator
- Snow Gun
- Ice Bath
Control Range
Temperature Humidity
0 to 50C 0 to 80C 10 ~ 98%RH
-20 to 50C -20 to 80C
-40 to 50C -40 to 80C
| Accuracy |
Accuracy:
+/-0.3C, +/-2%RH
Stability:
+/-0.2C, +/-2%RH
Fluctuation:
+/-0.2C, +/-2.5%RH
Temperature ramp:
0.7C per minute
Uniformity:
+/-0.3C, +/-3%RH
-
Horizontal air flow: 0.2 to 0.5m/s
-
LCD touch screen
Controller
Operation:Fix mode & program
mode
Multi-display:O2,CO2,temperature,humidity,
pressure and altitude
8-pieces biascalibration
Datalogger:multi-channel
Remote monitoring bymobile(option)
Display & Sensors
- 42”TV display of parameters (outside the chamber)
- 15” touch screen monitor (inside the chamber)
- Differential pressure Range:+/-100pa Accuracy:+/-1pa
Panel
Polyurethane sandwich
panel,100 or 150mm thickness Stainless steel surface or
g.steel with white coating Meet BS EN
13501 standard B1 class Size:
Custom design
panel,100 or 150mm thickness Stainless steel surface or
g.steel with white coating Meet BS EN
13501 standard B1 class Size:
Custom design
Epoxy non-slip and insulated floor loading:1000kN/m2
Accessories

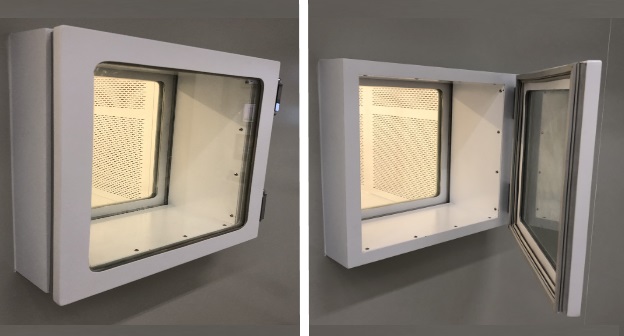

WindowSafety

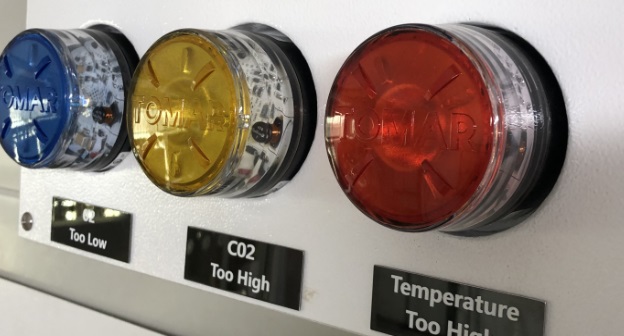

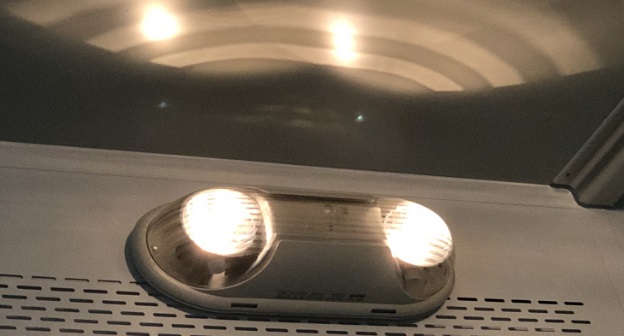

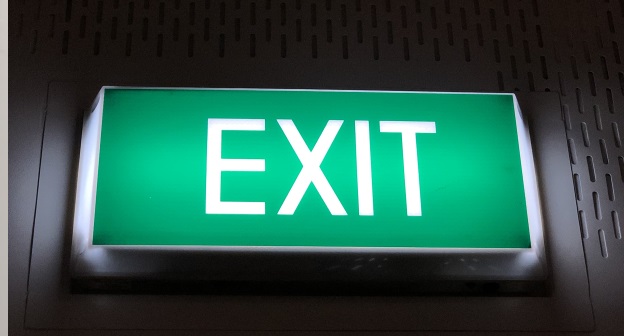

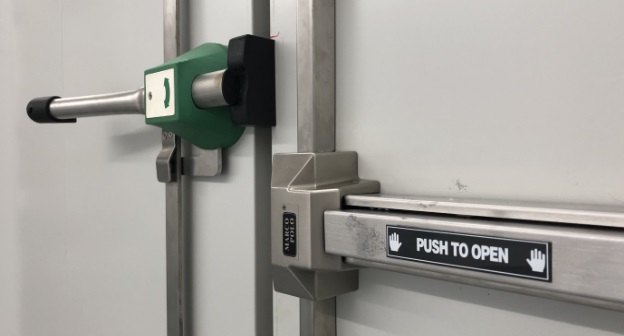

Alarm lamps Emergency stops with cover Fresh air control system Quick release push out door Noise levelVentilation

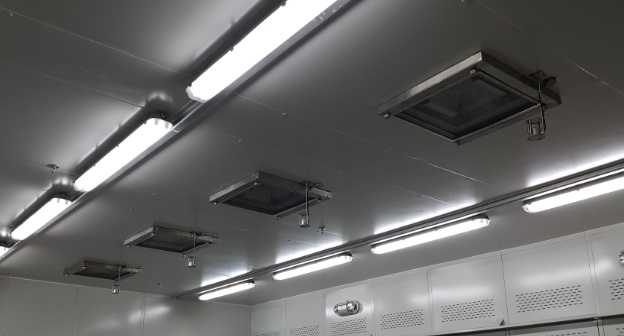

V-shape sound proof insulated ducting
Below are the photos of some parts
| All-in-one solution: Chamber can be integrated with the following equipments |
,
Range:400 to 1200W/m2
Range:450ml/32h@45mmH
Range:0-12m/s
Range:0-7000m
Keep CO2 in low ppm level
